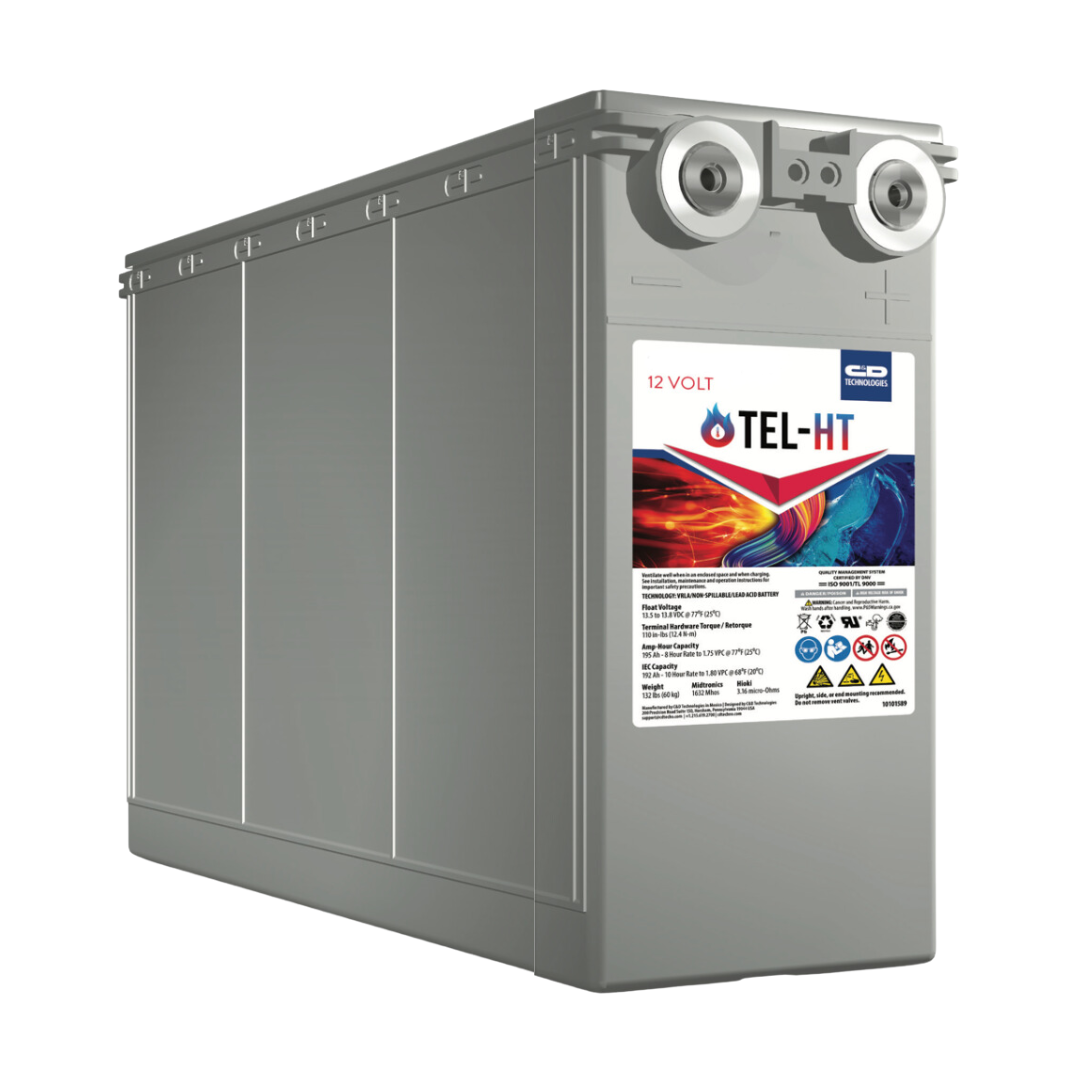

C&D TEL12-190FHT High-Temp Front Terminal Battery
C&D TEL12-190FHT TEL High-Temperature Series VRLA Battery
High-Tech Battery Solutions is an official authorized distributor for the OEM C&D Technologies Batteries, introducing the TEL High Temperature Series VRLA batteries from C&D, featuring MSE Pure Lead Plus Technology. These 12V batteries combine the best features from C&D’s industry-leading msEndurII 2V VRLA, the proven reliability of the TEL Long Duration Series, and the innovative design of the TRUE Front Access® series. Designed for high-temperature environments, the TEL High Temperature series delivers over 10 years of reliable performance under normal operation. Encased in rugged polypropylene, these batteries withstand extreme temperatures, shock, and vibration, ensuring durable and consistent performance in demanding conditions.
C&D Technologies The TEL-HT High Temp Series is an optimal solution routinely used in Uncontrolled Environments Wireline, Wireless, Outdoor Cabinets, Broadband, Microwave Repeaters, Fiber Optic Regen Sites. Also used in controlled environments offering an extremely long lifespan for applications in commercial offices nationwide .
Advantages of the TEL-HT High-Temp Series:
- 10+ years of life under normal operation (based on accelerated testing).
- Reliable performance in high-temperature environments
- Rugged polypropylene case for protection against extreme conditions
- Designed to withstand shock and vibration
- Low calcium grid alloy for reduced gas emissions and ease of recycling.
- Electrochemistry optimized for high rate performance
- AGM (Absorbed Glass Mat) VRLA (Valve Regulated Lead Acid) technology
- High Rate Discharge
- UL recognized and IATA approved (air freight)
Delivery: These batteries ship freight pre-paid via LTL to any commercial location, if shipping to a residential location an additional $100 fee will be added to the order due to limited access and liftgate fees charged to us by the freight companies.
C&D TEL12-190FHT TEL-HT Battery Dimensions:
- Length: 22.0 (in)
- Width: 4.9 (in)
- Height: 12.4 (in)
- Weight: 135 lbs
- Capacity: 195 AH
- Terminal: Front Terminal
C&D TEL12-190FHT TEL-HT Battery Specifications:
- OPERATING TEMPERATURE: Discharge: -40°F to +160°F (-40˚C to + 71˚C) Charge: -10°F to +140°F (-23˚C to +60˚C)
- RECOMMENDED CHARGING CURRENT: C20/5Amperes (Maximum) @ 77˚F (25˚C)
- FLOAT CHARGING VOLTAGE: 3.65VDC +/-0.15VDC Per 12V Unit
- TEMPERATURE COMPENSATION FLOAT CHARGE: 3.6mV/Cell˚C from (77˚F) 25°C (13.434 VDC @35˚C)
- EQUALIZE CHARGING VOLTAGE: 4.40 VDC to 14.80 VDC Per 12V Unit
- STORAGE: Battery may be stored up to 2 years at 77˚F (25˚C)
- TERMINAL:Threaded copper alloy insert terminal Front Access Models: 1/4-20 bolt
- TERMINAL HARDWARE TORQUE: Front Access Models 110 in-lbs (12.4 N-m) for 1/4-20 Hardware
- SELF STORAGE: Battery can be stored up to 24 months at 77˚F (25˚C) before a freshening charge is required.
Order Requirements: There is a minimum order quantity of four units per order. If you're looking for more than four units please feel free to shoot us an email via the contact us tab with the quantity you're looking for and your delivery zip code. A live battery specialist will get back to you within 24 hours.
Any questions regarding the OEM C&D TEL12-190 TEL-HT High Temperature Series battery? Please feel free to either give us a call toll-free at 1-877-775-4381 or contact us to talk to a specialist today.
